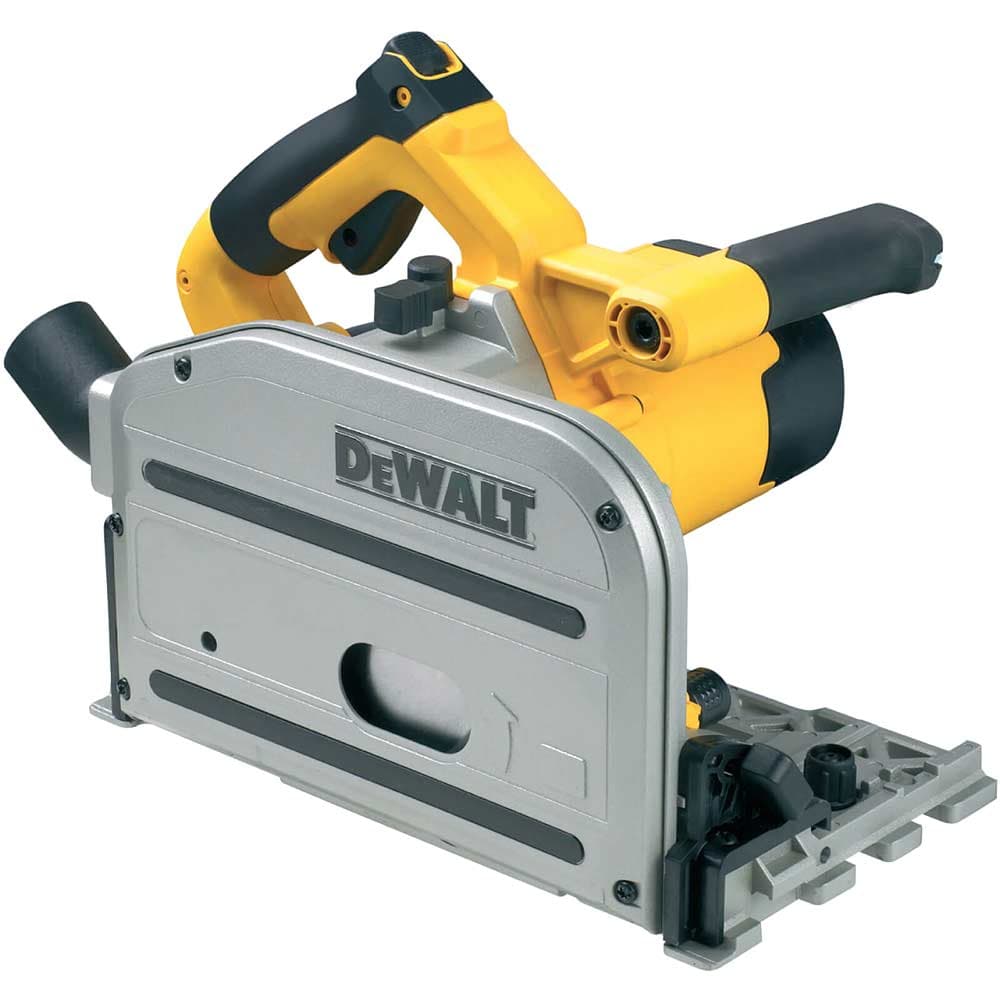

DeWalt DWS520K Plunge Saw 165mm 240v

DeWalt's DWS520K is a heavy duty saw with a parallel plunge action, variable speed with full wave electronics, a riving knife and an anti-kickback system. This kit includes the saw, 48 tooth blade and a carry case; it is also available packaged with a guide rail.

Features & Benefits

• Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
• A 48 tooth blade gives a fine and accurate finish with very little breakout in laminates
• Rail adjustment allows the saw to be adjusted accurately to the rail
• Variable speed allows the correct speed to be set for different types of materials
• Full wave electronics maintains a constant speed under heavy load
• The enclosed guard gives a 90% dust extraction capability
• 55mm depth of cut allows the trimming and sizing of most common door sizes
• The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts Specifications
• Power Input: 1300w
• Power Output: 690w
• No Load Speed: 1750-4200 rpm
• Blade Diameter: 165mm
• Blade Bore: 20mm
• Bevel Capacity: 47°
• Max. Depth of Cut at 90º: 59mm
• Max. Depth of Cut at 90º (with guide rails): 55mm
• Max. Depth of Cut at 45º: 44mm
• Max. Depth of Cut at 45º (with guide rails): 40mm
• Weight: 5.1kg
• Length: 303mm
• Height: 265mm
• Hand/Arm Vibration: 2.5 m/s²
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Sound Pressure: 92 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Sound Power: 103 dB(A)
• Sound Power Uncertainty: 3 dB(A) Contents
• DWS520K Plunge Saw
• 48 Tooth Precision Saw Blade
• Heavy Duty Carrying Case
