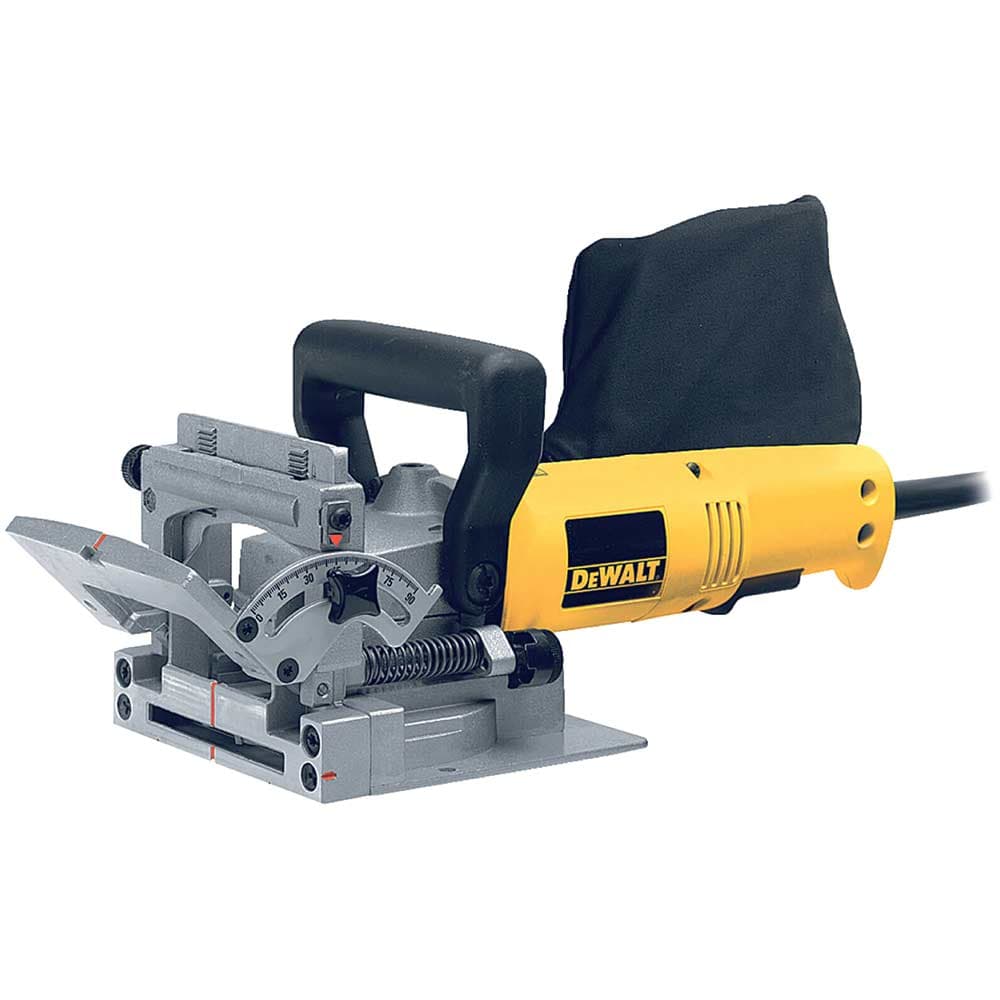

DeWalt DW682K Biscuit Jointer 240v

The DW682K is a 600w biscuit jointer which features pre set cutting depths for 0, 10 & 20 biscuit sizes along with additional fine adjustment controls for task specific accuracy.

Features & Benefits

• Rack and pinion control provides precise vertical adjustment and fence alignment
• Pre-set cutting depths for 0, 10 and 20 biscuit sizes with additional fine adjustment
• Grooving setting with up to 20 mm depth of cut gives increased versatility
• Mitre fence that remains attached in all applications for simple use
• Anti slide grippers, eight guiding notches and fence window to aid accurate cuts
• Spindle lock mechanism for quick and easy blade changes with a single spanner Specifications
• Power Input: 600w
• Power Output: 335w
• No Load Speed: 10000 rpm
• Max. Cutter Diameter: 100mm
• Max. Cutting Depth: 20mm
• Fence adjustment: 0-90°
• Joint Groover Setting: 4mm
• Weight: 3.0kg
• Length: 320mm
• Height: 150mm
• Hand/Arm Vibration: 2.5m/s²
• Uncertainty K 1 (Vibration): 1.5m/s²
• Sound Pressure: 82 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Sound Power: 100 dB(A)
• Sound Power Uncertainty: 3.1 dB(A) Contents
• DW682K Biscuit Jointer
• Tungsten carbide tipped grooving cutter
• Shavings bag
• Spanner
• 35 mm Dust extraction spout
• Heavy duty carrying case
